Roadside dynamometer for Professionals
DynoPro is a road dynamometer used to measure power, torque, acceleration
And other parameters of motor vehicles. Measurements can be made on vehicles with any type of drive. The dynamometer is designed for measurements in broadly defined motorsport by professionals.

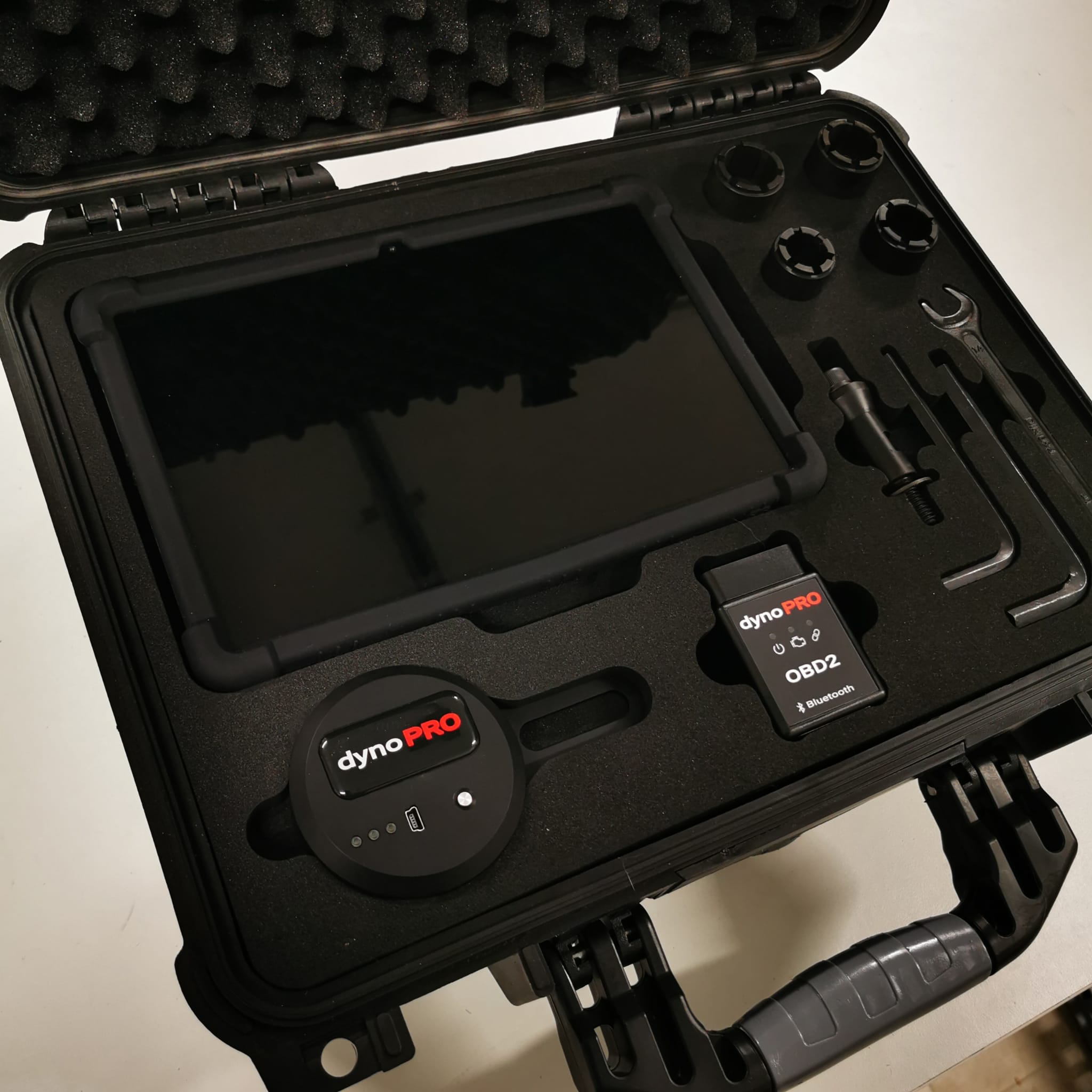

Description of Kit Components
A - Protective case with foam insert
B - Tablet (with DynoPRO app) in a protective case, charger
C - Dyno probe - attached to the wheel of the vehicle
D - OBD2 probe
E - Set of attachment sockets Dyno probes - 17mm , 19mm, 21mm , 22mm
F - M12 threaded pin for mounting Dyno probes and M10 screw with spring washer
G - Allen wrench 8mm, 10mm and wrench 14mm
All components were made on CNC machine tools. Assembly elements
Are made of tempered quality steel.
dynoPRO - A Quick and Effective Solution
The device features a compact housing made of aluminum and plastic.
Assembly of the device takes about 2 minutes after which the equipment is ready for measurement.
The measurement requires the weight of the vehicle and the tire size (in format, for example, 205 55 16 or circumference in mm).
The device has a built-in weather station for measuring temperature and atmospheric pressure(-40° + 100°, 300-1100hpa). Besides, the device can read the ambient temperature from the OBD2 connector.
Connectivity with the DYNO and OBD2 probe is via Bluetooth. The Dyno probe has a built-in battery that allows for about 10 hours of operation. The OBD2 probe is powered from the OBD2 connector.
In addition to the standard power measurement, the device allows logging additional engine parameters via the OBD2 connector, such as boost pressure , pressure on the injection rail, exhaust gas temperature, etc., and placing them on the chart in relation to the power or torque graph.
In addition to power measurement, the software allows engine controller diagnostics in the EOBD standard (identification of the engine controller and diagnostic protocol, reading and clearing DTC errors, measuring actual values).
Measurement results are presented in 3 variants. Actual, DIN70020, SAE J1349 and EEC. Repeatability error of measurements with the same procedure and conditions below 1%.
The device has no time or quantity limitations in operation. Free software updates. Technical support. The warranty for the device is 2 years.
Assembly of the device takes just 2 minutes!
Instant assembly and disassembly of the dynamometer, makes it possible to take measurements anywhere and anytime, which will be most appreciated by mobile workshops.
Installation and Measurement with dynoPRO
Installation of the device consists of 6 steps
- Choosing the right size socket for the rim mounting bolt
- Screwing the cap together with the bolt to the bolt on the rim
- Roughly positioning the probe in the center of the wheel and screwing it on
- activation of the probe
- plugging the OBD2 probe into the vehicle's socket
- launching the tablet and software
The measurement procedure consists of the following steps.
- selecting the MEASUREMENT menu
- determination of the profile of the measured vehicle (name, weight of the vehicle, tire size, source of RPM engine signal - usually taken from OBD2 or calibrated)
- specific measurement
- start of measurement in software
- A smooth start of the vehicle in 1st and 2nd gear
- put in 3rd gear and accelerate rapidly to the end of the rev range then put in neutral and the program will start counting down 10s to calculate rolling resistance and others
- the program calculates the power and torque of the vehicle and presents it to the user
- Measurement report generation (the software generates the report in PDF, JPG , CSV format and allows you to send it by e-mail or share it on any communicator)
User Interface, Sample dynoPRO
in the Set you will find
10″ 16GB WiFi screen with dynoPRO software and charger.
The tablet included in the kit has a sturdy aluminum case and a protective plastic cap. Included with the tablet is a charger with a micro USB connector which, in combination with a mini USB adapter, allows you to charge the Dyno Probe.
The Dyno probe is made of aluminum and spring steel. Communication is via Bluetooth standard. It has a built-in speed sensor, ambient temperature sensor and atmospheric pressure sensor. The probe is battery-powered, the operating time is about 10 hours. Battery charging is via a mini USB connector , an adapter is included with the charger. The charger from the Tablet is used.
The OBD2 probe transmits the vehicle's RPM signal and other actual parameters during the measurement in Bluetooth standard. In addition to the power measurement mode, the probe allows diagnostics of OBD2-compliant passenger cars.
The probe makes it possible to identify the engine controller and diagnostic protocol, read and clear errors, measure available real parameters from the engine controller. During the measurement, the user can select any real parameters, e.g. intake manifold boost pressure , engine temperature and others made available by the engine controller, and the program will automatically apply them to the power measurement chart.
An allen wrench of 8mm, 10mm and a wrench of 14mm.
Set of sockets for mounting Dyno Probe - 17mm , 19mm, 21mm , 22mm.
Pin with M12 thread for mounting Dyno Probe and M10 screw with spring washer.
Sturdy suitcase with solid construction, made of polypropylene combined with ABS.
